How to Upgrade Laptop Processor?

Is your laptop slow? Whatever applications you run, it keeps lagging frequently, and eventually, applications do not respond.

This problem is due to your laptop’s slow processor. Swapping it with a new fast processor can dramatically boost the laptop’s performance. For instance, upgrading your processor from 2.13GHz Pentium to 2.40GHz Intel Core i5 raises the benchmarks from 1349 to 2368. And no wonder you can install, replace or upgrade the processor by yourself at your place.

Once you go through this guide you will be able to learn How to Upgrade Laptop Processor?. But before putting your hands on the laptop, you should verify whether the processor you opt for is compatible with your Notebook. Many laptops don’t support processor change as it is directly soldered on the motherboard and in such a case you should seek a technician’s help.

How to find the perfect replacement for your old processor?

  1. First, check your laptop’s present CPU from the system information in your computer. Or you can simply google it.
  2. Next, you should check the service manual to know what processors were available with this laptop.
  3. Visit the official forum of the manufacturer to know which processor upgrade worked well with the laptop.

Get ready with the necessary tools to upgrade the processor. Follow the below points carefully to learn How to Upgrade Laptop Processor?

Steps on How to Upgrade Laptop Processor?

Step 1: Update the BIOS

Before peeking into the laptop’s internal firstly check that your computer has the latest version of BIOS. These updates are released to support newer CPUs. You can check the updates by visiting the manufacturer’s website.

If this step is not done, your system won’t boot at all after chip Installation. Once the update is done, then move on to the next step.

Step2: Remove the Battery

This is the easiest step as you all know. If you are new to this then go through the user manual once. Remove the battery and dummy card. If there is an internal battery then take extra caution while removing it as current is still available in a portion of the motherboard.

Step 3: Remove the Back Cover

Disconnect the internal and external power sources before trying to remove the back cover. With the help of screwdrivers softly remove the back cover. Now you shall be able to see the processor, if not then remove the upper part as well.

Remove all the screws present on the backside even the hidden tiny ones. Along with this if any part is detached like the hard disk drive then keep it aside safely.

Step 4: Remove the Keyboard

As all the screws from the backside have been removed, the keyboard, DVD writer, and the wireless adapter must be loosened now. Gently take out the keyboard and remove the ribbon cable. Take out the DVD writer and Wireless adapter as well. Handle these portions with extreme care.

Step 5: Remove the upper shell

Once the keyboard is gone, there might be some screws and ribbon inside, remove them all. Carefully remove the upper shell now and take care of the delicate cables and connectors. Don’t put pressure while removing the parts.

Step 6: Remove the Display Assembly

If the display assembly is already transparent before step 5 then you have to do this step before.

Properly unscrew the hinges from the base of the display and unplug the video along with other cables like Wi-Fi antenna cables.

Step 7: Remove the Heat Sink

In this step pretty sure you can see the motherboard. If your processor is on the top side then directly remove the heat sink to access the processor and the graphics card.

If the processor is not visible yet then take out the whole motherboard. Just for caution make yourself properly grounded by wearing an antistatic wrist strap.

Step 8: Replace the CPU

Once the heat sink is removed, the processor slot is right in front of you. Turn the CPU socket’ screw and lift the processor upwards gently until it leaves the socket.

Place the new CPU in the socket and look for the proper alignment. Recheck the placement, if it needs a little push then there is a problem with alignment. Screw the socket again and if there is any locking bar present then lock it properly.

Step 9: Apply Thermal Paste and Reassemble

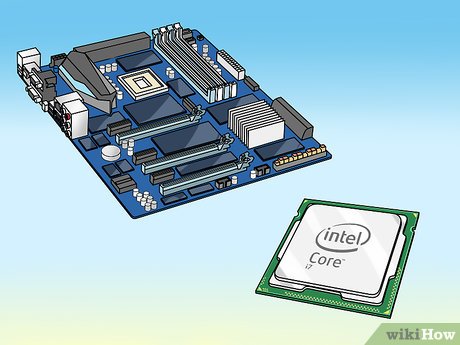

how to upgrade laptop processor

Remove the previous gray-colored heat sink with 99% isopropyl alcohol solution and a lint-free rag.

The heatsink should be prepared from anew. Let it dry out, then apply a thin layer of thermal paste on the top of the CPU. Spread it evenly with a plastic card. Place the heat sink back and start reassembling.

After booting up the system, go to the BIOS to check the CPU. Launch the windows and you’ll be able things are done faster than earlier.

Conclusion:

So this was all about replacing your laptop’s old processor with a new one. We focussed on the primary task and believe in you to replicate the same as discussed. Enjoy the faster performance with a new processor and never lag.
